1986-1988 Mercury 200 hp Black Max Oil Injected decal set blue 43530A86

More Views

1986-1988 Mercury 200 hp Black Max Oil Injected decal set blue 43530A86
$80.00

Availability: In stock

Mercury 200 hp Black Max vinyl decal set replica custom made in Blue for 1986, 1987 and 1988 Mercury Oil Injected Outboards.

Referenced Part number:

43530A86 DECAL SET (BLACK) Supersedes: 43246A84 DECAL SET (BLACK)
OR
Description

Details

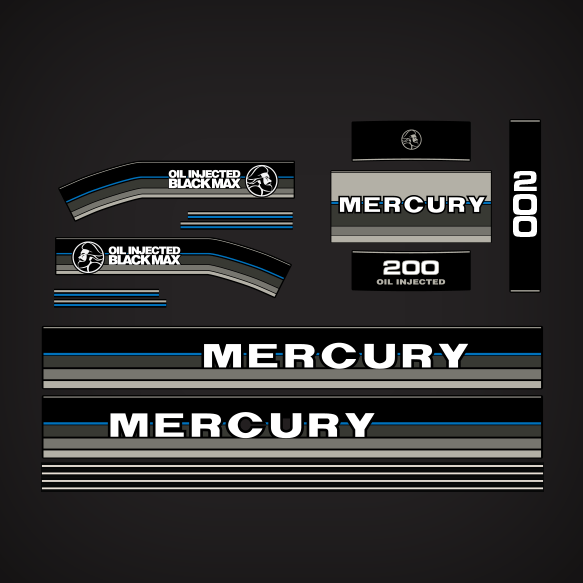

You will receive the following Mercury Outboard Decals:

  • (2) Oil injected Jock strap decals - Port and Stbd Side
  • Grey/Blue stripes - Port Stbd
  • Mercury God decal - Front Side
  • Mercury decal - Front Side
  • Oil injected rectangle decal - Front Side
  • 200 Vertical decal - Rear Side
  • Mercury blue side decals - Port Side
  • Mercury blue side decals - Starboard Side
  • Stripes decals (x4)

Mercury 43530A86 DECAL SET with little variations for the following:

1980 MERCURY 1200620, 1200640, 7200620, 7200640
1982 MERCURY 1200622, 1200642, 7200622, 7200642
1983 MERCURY 1200623, 1200643, 7200623, 7200643
1984 MERCURY 1200624, 1200644, 1200724, 1200744, 7200724, 7200744
1985 MERCURY 1200725, 1200745, 7200725, 7200745
1986 MERCURY 1200726, 1200746, 1200746, 7200746
1987 MERCURY 1200727, 1200747
1988 MERCURY 1200412BD, 1200422BD, 7200412ND, 7200422ND

Mercury 200 hp 43530A86 decal set (Black) will work on the following:

1
7620A4 TOP COWL ASSEMBLY (BLACK) (USE WITH DESIGN "A" LATCH) - Supersedes: 6608A4
7620A22 TOP COWL ASSEMBLY (GRAY) (USE WITH DESIGN "A" LATCH) - Supersedes: 7620A8
7523A2 COWL ASSEMBLY Port (BLACK) (USE WITH DESIGN "B" LATCH)
7523A18 COWL ASSEMBLY Port (GRAY) (USE WITH DESIGN "B" LATCH) - Supersedes: 7523A10

10
7619A1 TOP COWL ASSEMBLY (BLACK)(USE WITH DESIGN "A" LATCH) - Supersedes: 6607A1
7619A5 TOP COWL ASSEMBLY (GRAY)(USE WITH DESIGN "A" LATCH) - Supersedes: 7619A2
7524A4 TOP COWL ASSEMBLY Starboard (GRAY)(USE WITH DESIGN "B" LATCH) - Supersedes: 7524A2
7524A1 TOP COWL ASSEMBLY Starboard (BLACK)(USE WITH DESIGN "B" LATCH)

16
7532A2 COVER ASSEMBLY Cowl - Front (BLACK)(DESIGN "B" LATCH)
7532A23 COVER ASSEMBLY Cowl - Front (GRAY)(DESIGN "B" LATCH) - Supersedes: 7532A9, 7532A32
5399A3 FRONT COVER (BLACK) (DESIGN "A" LATCH)
5399A16 FRONT COVER (GRAY) (DESIGN "A" LATCH)

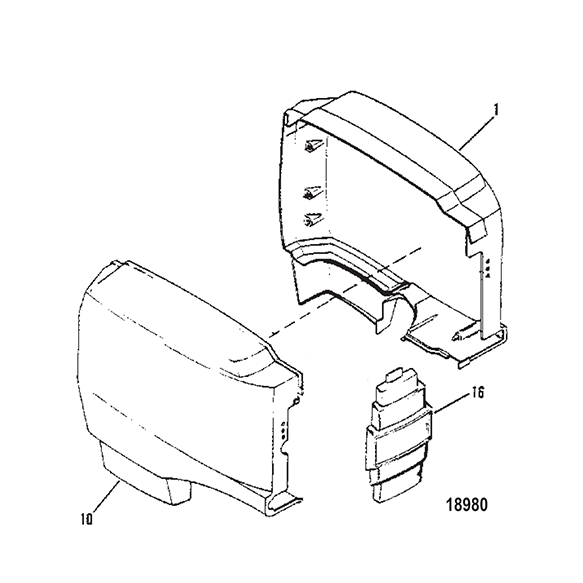

TOP COWL DIAGRAM 18980

Additional Information

Additional Information

SKU M8688-200-BM-DS-B
HP 200
Top Cowl Color Black
Top Cowl Cover 7620A4, 6608A4, 7620A22, 7620A8, 7523A2, 7523A18, 7523A10, 7619A1, 6607A1, 7619A5, 7619A2, 7524A4, 7524A2, 7524A1, 7532A2, 7532A23, 7532A9, 7532A32, 5399A3, 5399A16
Part # 43530A86, 43246A84
Color Blue
Year 1986, 1987, 1988
