1954 Johnson 25 hp Electric Decal Set

More Views

1954 Johnson 25 hp Electric Decal Set
$55.00

Availability: In stock

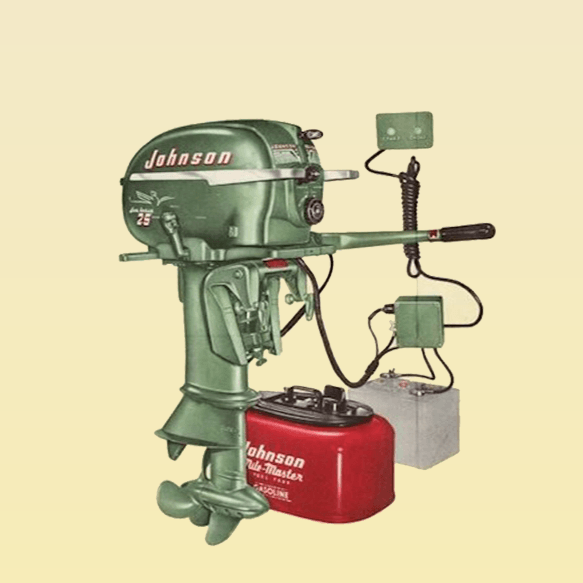

Johnson Decal Set Replica for 1954 Johnson 25 hp Outboard motor covers.

Referenced Model number: RDE-15, RDEL-15, RDE-16 and RDEL-16
OR
Description

Details

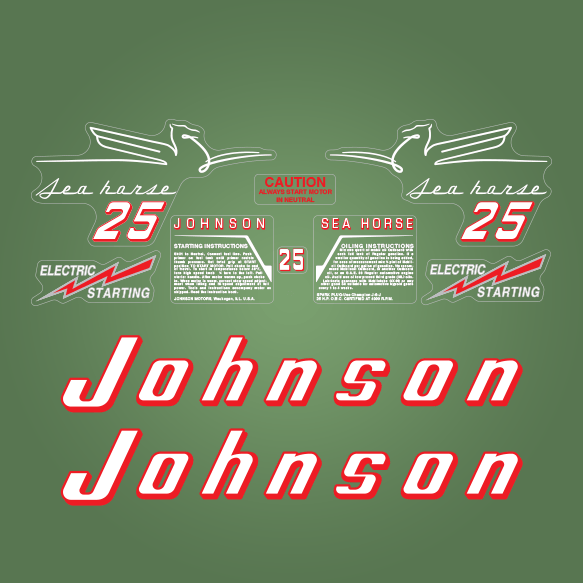

You will receive the following Johnson outboard decals:

  • (2) Johnson Lettering - Port and Stbd Side
  • (2) Sea Horse 25 hp - Port and Stbd Side
  • Caution Decal
  • (2) Electric Starting - Port and Stbd Side
  • Starting Instructions - Front Side
  • 25 Decal - Front Side
  • Oiling Instructions - Front Side

Starting Instructions Decal Reads:

STARTING INSTRUCTIONS

Shift to Neutral, Connect fuel line. Push primer on fuel tank until primer resists thumb pressure. Set twist grip at START position TO START MOTOR. Pull choke to end of travel. To start in temperatures below 40°F, turn high speed knob ¼ turn to the left. Pull starter handle. After motor warms up, push choke in. When motor is warm. correct slow speed adjustment when idling and Hi-speed adjustment at full power. Tools and instructions accompany motor as shipped. Read the instruction book.
JOHNSON MOTORS, Waukegan, ILL. U.S.A.

Oiling Instructions Decal Reads:

OILING INSTRUCTIONS

Mix one quart of mobil oil Outboard with each full tank of Regular gasoline. If a smaller quantity of gasoline is being added, for ease of measurement mix ¼ pint of Mobiloil Outboard per gallon of gasoline. We recommend Mobileoil Outboard, or another Outboard oil, or an S.A.E. 30 Regular automotive engine oil. Avoid use of low proced third grade (ML) oils. Lubricate gearcase with Mobilelube GX-90 or any other good oil suitable for automotive hypold gears every 1 to 4 weeks.
SPARK PLUG-Use Champion J-6-J
25 H.P. O.B.C. CERTIFIED AT 4000 R.P.M

1954 Johnson 25 hp Electric decal set may work on the following:

Model RDE-15
Model  RDEL-15
Model RDE-16
Model  RDEL-16
Additional Information

Additional Information

SKU J54-25-ES-DS
HP 25
Top Cowl Color Green
Top Cowl Cover No
Part # No
Color Red
Year 1954
